Different models, different indicators and interfaces
1. Basket button; can be connected to devices with wireless Bluetooth
2. I2i audio output: 3.5 audio output interface, can be plugged into external audio equipment such as headphones or amplifiers.
3. USB interface: USB interface can provide 5V 1A output power, charge the connected device: can also access U disk, realize U disk intro. The function of playing a sound file.
4. USB interface: provide 5V2A output power, fast charging of connected devices (including Apple iPad series).
5. HDMI interface: can be used to connect various devices with HDMI interface, such as XBOX360.

• When using, insert the digital information source and the device will open automatically.
• Connect the terminal device to be connected to the corresponding interface on the front panel through the corresponding cable, or connect to the device through wireless Bluetooth, and connect, Interrupt is set to video or audio output mode.
• When Bluetooth is connected, first open the Bluetooth function through the Bluetooth button, search well in the mobile phone or other terminal device to connect to the device, the corresponding Bluetooth device name is Bluetooth, the connection password is randomly displayed on the screen, and the connected music is broadcasted after the connection. Can output stereo sound through a flat-panel TV.
• When using the USB interface, simply plug the USB interface into the USB socket of the device to charge the digital device. When using USB for U disk playback, insert the USB flash drive, use the TV remote control to control and select the USB flash drive. The corresponding file is played. Note: Please confirm the charging voltage of the device being charged before charging [5V DC].

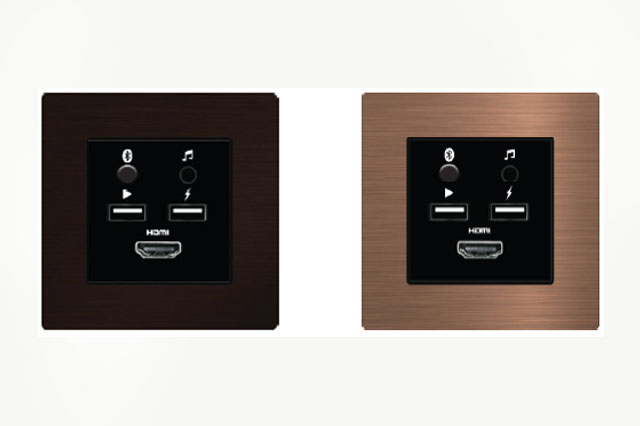

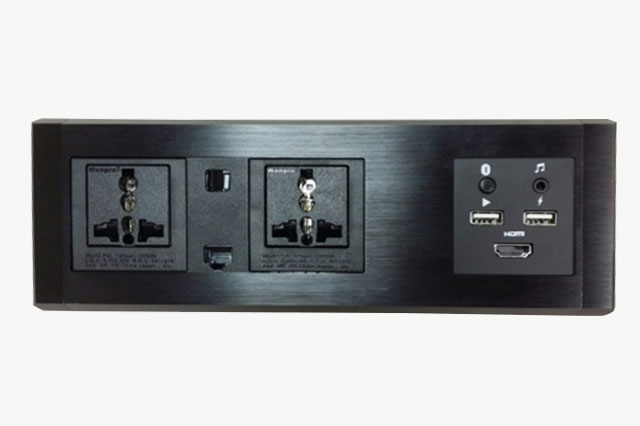

The front panel of the hub includes HDMI port, 3.5mm audio interface, USB charging port, USB playing port (can be used as a charging port), as seen below (the indicator & interface supplied may vary depending on the model)

1. Wireless Bluetooth feature: can connect to an equipment with Bluetooth output function to enjoy music over TV speaker.
2. 3.5mm Audio interface: can connect to MP3, iPod etc.
3. USB Playing port [►]: can connect to USB flash drive and support USB solution for playing. Meanwhile , it can provide an output current of 5V/0.5A.
4. USB Charging port [ ]: can connect to all the devices which have USB interfaces and charge for the devices including iPod/iPad/iPhone. The power supply is 5V/2A.
5. HDMI Port: can connect to compatible digital cameras, mobile phones which have HDMI interfaces

• When you connect the source to HD8600M it will be “ON” automatically.
• The guest can play Audio/Video files via cable connection to the relative port on HD8600M front panel. Or play Audio files via wireless Bluetooth connection to the HD8600M.
• Wireless Bluetooth Feature: press the wireless Bluetooth button open the Bluetooth feature on your device, the guests can find the Bluetooth source named “BLUETOOTH” and “BLUETOOTH PASSWORD” will be shown on the TV. Input 4 digit password and then guest’s device is connected to HD8600M and can play the audio files with the stereo system of the HD TV.
• USB Charging: Guests can plug portable electronic devices to HD8600M USB charging port for successful charging.
• USB Port: on plugging a USB Flash drive into the HD8600M USB playing port, guests can choose to play the contents of the USB Flash drive by using the TV remote control.
• Remark: the Power Supply for HD8600M is 5V DC

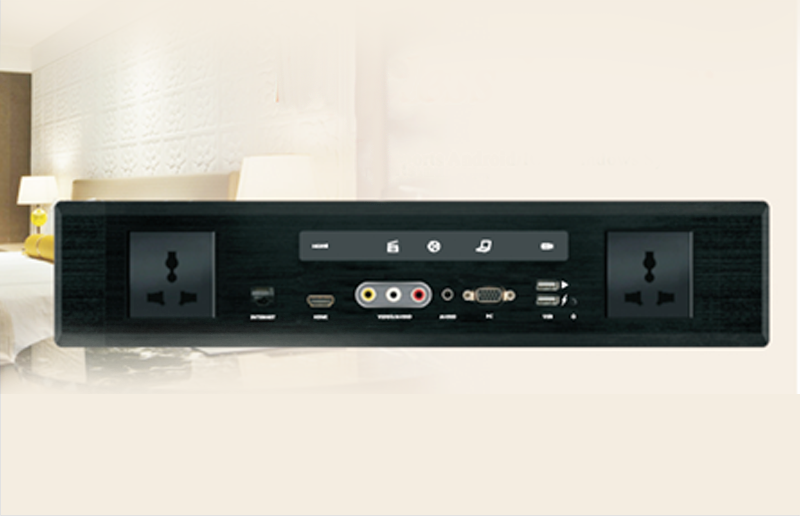

Front-Panel Ports
A. HDMI In
B. Composite AV In
C. 3.5mm Audio In
D. VGA (RGB) In
E. USB Charging 5V/2A
F. USB Playing
G. AC Power Outlets
H. RJ45 Interface
I. On/Off Switch
J. Wireless Display

TV Requirement
HDMI

Power Requirements
AC 100-240V 50/60Hz 0.5A

Auto-Sensing and Auto-Switching
HD8660 Series will automatically sense when it’s plugged an electronic device and switch the TV to relative HDMI input, compatible with hotel’s most popular TV brands.

USB Solution
Two USB interfaces: the USB playing interface can support USB solution for playing; the USB charging interface can offer fast charging for all portable electronic devices, including iPod/iPhone/iPad.

Front-Plate Colors Options
Black, Silver, Golden, Champagne, Customized Color

Rear Installation Cables Included HDMI cable 9.84' (3.0 meters)

Single-HDMI via CEC Control for the In-Room TV Supporting CEC Specification

HD8660 Series will automatically turn on the TV when one device is plugged in, and switch the TV to the relative HDMI input, compatible with hotel’s most popular TV brands.

Cut-Out Dimensions (Width * Height* Depth) HD 8660 Series
Wall-embedded: 390mm*80mm*82mm
Desk-embedded: 356mm*70mm*85mm

Warranty
1 year Limited Warranty

Certifications
CE, FCC, RoHS certified

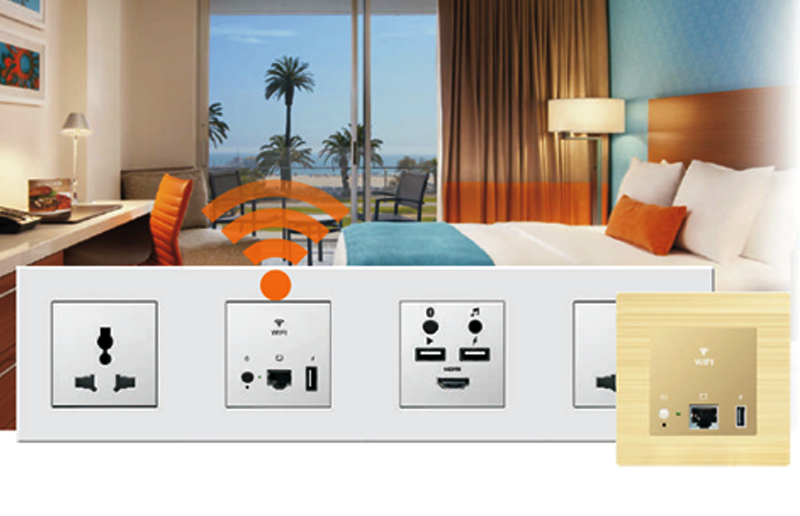

Modular Design
The Modular design allows combining the panel from 1 gang to 5 gang.

Material & Color
V-HD86-WP is available in 3 elegant finishes; plastic, brushed metal & tempered glass.
A dolor and finish customization is possible for a right MoQ.

Convenient Installation
It can be installed on original socket directly instead of pulling a new network or changing the room’s layout, which keeps the original Style of the room and breaks up the old ways of wireless network construction.

Professional AC centralized management
The AC centralized management system can detect problematic AP and send warning emails automatically. What’s more, it also can find new added Aps. With this management system, the users are able to manage and configure all Aps.

Support Seamless Roaming
It supports seamless roaming and automatic switching instead of manual linkage. Once the Hotel Guest connects to the network, the network wont disconnect while roaming anywhere in eth hotel.

Power Supply Mode
POE (IEEE802.11 af | IEEE802.11 at) | 100~220V 50/60Hz AC

Integration of AC and AP
Integrate AC’s function into AP, which greatly reduces the cost of small network.

Support APP Management
It offers an APP management system allowing to be configured by mobile phone instead of PC.

Front-Panel Ports
A. On/Off Switch
B. Reset
C. RJ45 Interface (LAN Interface)
D. USB Charging Socket 5V/1A

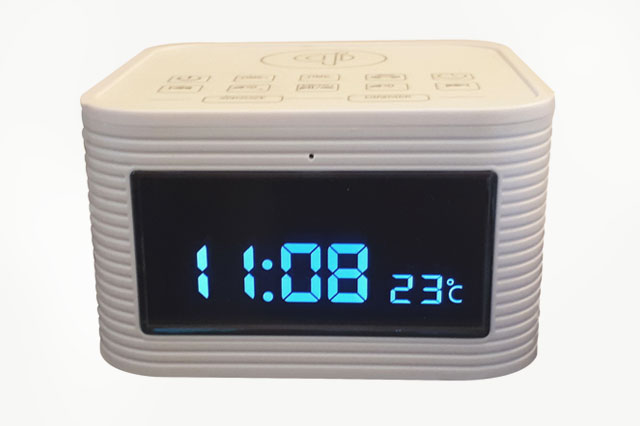

FEATURES

FM Radio
AUX external input
3 x USB charging
Double acoustic quality output
Environmentally friendly and low-energy energy
With Hands-free function
High quality speaker, bright treble, deep bass
Play music while charging your phone by USB. (Note: just one port can play music while charging)
Wireless charging
Smart alarm clock – LCD Display 82x40mm
Timed shutdown
FM automatic frequency modulation
Anti-theft feature

SPECIFICATIONS

Bluetooth version: 2.1
Bluetooth distance: 10M
Speaker: 4 Ω 2 in 3 w
Distortion degree: < 1%
Output power: 3W + 3W
Signal-to-noise ratio: 65dB
Power: ac100-240v 50/60hz DC19V / 1.2 A
Product size: 110 * 110 * 64mm
Bluetooth mode: A2DP/AVRCP/HFP/HSP
Net weight: approx. 550gm (net wt.)
Frequency range 40hz - 20khz
Color option: Black &/or White
External material/HOUSING: ABS

ACCESSORIES

1 x Adapter | 1 x User Manual | 1 x AUX cable

WARRANTY

12 months (against manufacturing defects)

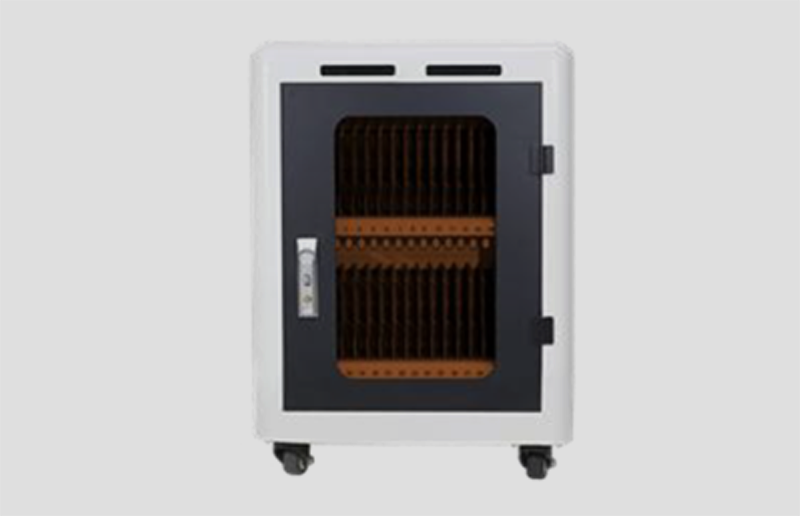

30 Pieces
Size: 670*560*1060mm

Fast charging and secure storage with convenient USB charging port, ideal for tablets, e-readers, devices up to 11''.

Features

Compatible
Compatible for iPad, Windows & Android devices.

Time-Setting function
Equipped with time-setting function. By setting the charging time, the cart will start and stop charging automatically.

Smart charging system
USB-Port | Leakage & short circuit protection module. Over-charging protection.

LED display
Power supply management with smart LED display, charging status is visible.

High Security
Dependable locks for front area &the back area. Three point locking system to keep your valuable devices safely.

Power System
Input:AC100-240V 50/60HZ

Cooling & Ventilation
Two installed cooling fans with ventilation holes

Castors
Four ultra-quiet universal, two with locking functions

Security
3 point mechanism with lock hole in front doors, separate locking in back IT area

Warranty
Three year Warranty on the body | One-year warranty on the electrical system | Cords and Plugs are not warranted.

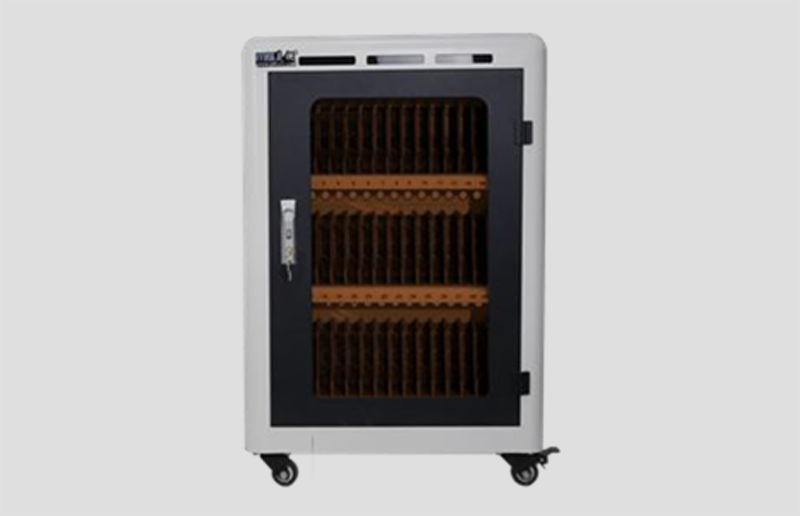

45 Pieces
Size: 670*560*1150mm

Fast charging and secure storage with convenient USB charging port, ideal for tablets, e-readers, devices up to 11''.

Features

Compatible
Compatible for iPad, Windows & Android devices.

Time-Setting function
Equipped with time-setting function. By setting the charging time, the cart will start and stop charging automatically.

Smart charging system
USB-Port | Leakage & short circuit protection module. Over-charging protection.

LED display
Power supply management with smart LED display, charging status is visible.

High Security
Dependable locks for front area &the back area. Three point locking system to keep your valuable devices safely.

Power System
Input:AC100-240V 50/60HZ

Cooling & Ventilation
Two installed cooling fans with ventilation holes

Castors
Four ultra-quiet universal, two with locking functions

Security
3 point mechanism with lock hole in front doors, separate locking in back IT area

Warranty
Three year Warranty on the body | One-year warranty on the electrical system | Cords and Plugs are not warranted.

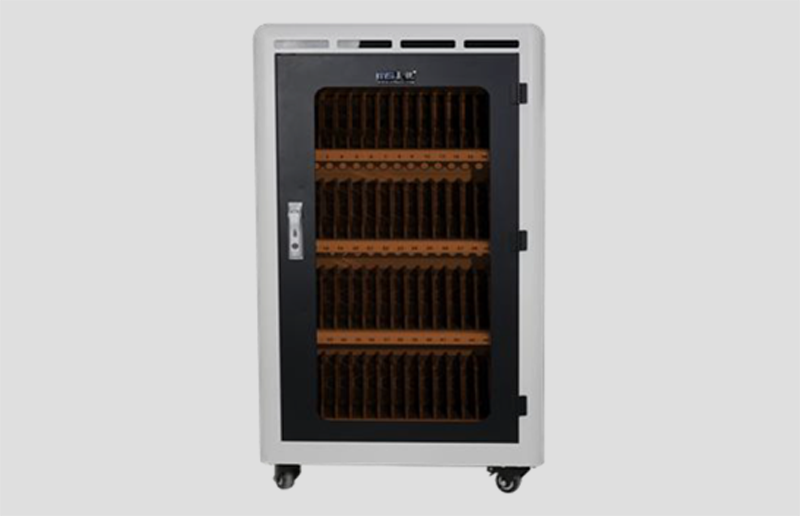

60 Pieces
Size: 670*560*1240mm

Fast charging and secure storage with convenient USB charging port, ideal for tablets, e-readers, devices up to 11''.

Features

Compatible
Compatible for iPad, Windows & Android devices.

Time-Setting function
Equipped with time-setting function. By setting the charging time, the cart will start and stop charging automatically.

Smart charging system
USB-Port | Leakage & short circuit protection module. Over-charging protection.

LED display
Power supply management with smart LED display, charging status is visible.

High Security
Dependable locks for front area &the back area. Three point locking system to keep your valuable devices safely.

Power System
Input:AC100-240V 50/60HZ

Cooling & Ventilation
Two installed cooling fans with ventilation holes

Castors
Four ultra-quiet universal, two with locking functions

Security
3 point mechanism with lock hole in front doors, separate locking in back IT area

Warranty
Three year Warranty on the body | One-year warranty on the electrical system | Cords and Plugs are not warranted.

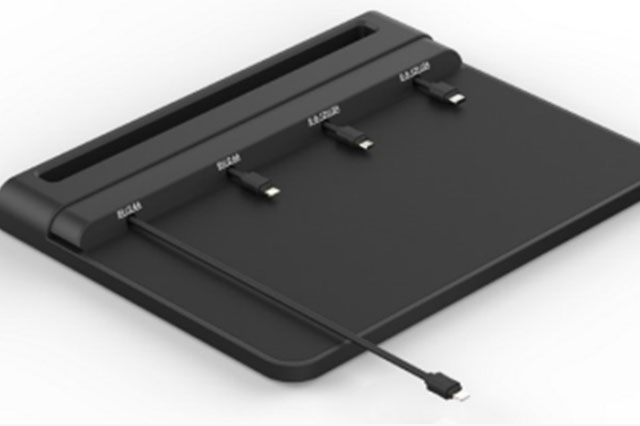

Universal Charging Station can recharge up to 4 smartphones at once (or 3 smartphones and 1 tablet). Select your preferred 4 cables from your choice of 6 (4 short, 2 long).

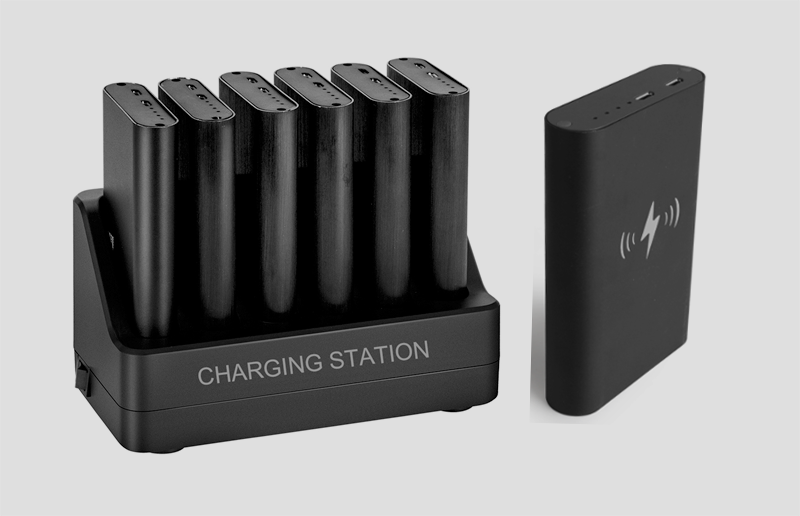

6 Slot Power Bank Charging Station
For 6 Batteries charging at the same time
Each unit includes 1 Station and 6 Power Banks
Magnetic Power Bank (Charging only possible by docking on the station)

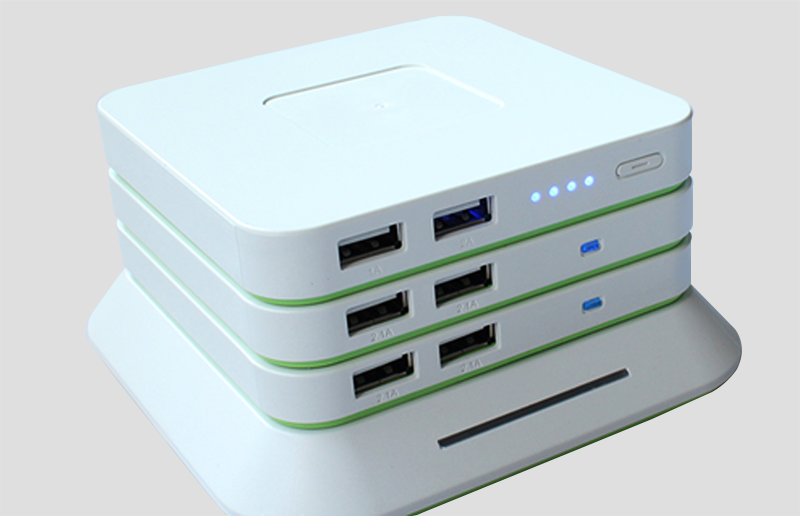

One charging base, Two way of input: DC port or micro USB port | DC port: 12v1.5A | Micro port: 5V2A | Output: 3PIN DC4.2V4A max | Usage: charging ST-PB2,PB3, PB0

ST-PB0 main power bank of 2 USB ports. To put on the top of the power bank units with customized LOGO | Capacity: 6000mAh | input: to be charged by charging base or micro USB port Output: 5V1A, 5V2A | Usage: charging phone, PB2,PB3, LED light 1, LED light 2, blue tooth speaker, QI wireless charger etc.

ST-PB2 sub power bank. The second generation sub power bank with 2 USB port without micro USB port | Capacity: 6000mAh | input: to be charged by 3pin from charging base or sub power bank or main power bank(can not be charged other way) | Output: 5V1A, 5V2A | Usage: charging phone, PB2,PB3, LED light 1, LED light 2, blue tooth speaker, QI wireless charger etc.

ST-PB3 sub power bank. The third generation sub power bank with 2 USB port with input micro USB port. Capacity: 6000mAh | input: to be charged by 3pin from charging base or sub power bank or main power bank or micro USB port. Output: 5V1A, 5V2A. Usage: charging phone, PB2,PB3, LED light 1, LED light 2, blue tooth speaker, QI wireless charger etc.

Extension usage accessories for colorful life. | ST-PS8L1 4 classes adjustable LED light pad(2w,4w,6w,8w) | ST-PS8L2 4 classes adjustable LED light tower(2W/4W/6W/8W) | ST-PS8S4 4W blue tooth speaker | ST-PS8QI QI standard wireless charger pad | ST-PB8F mini electric fan.

All above accessories has micro USB port to be connected with adapter or powered by ST-PB0,ST-PB2,ST-PB3
